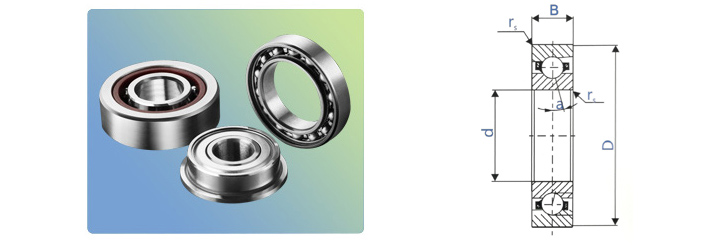

| 外形尺寸 | 型號 | rsmin | rsmin | 額定載荷a=15° | 極限轉(zhuǎn)速 | 額定載荷a=15° | 極限轉(zhuǎn)速 | ||||||
| d | D | B | Cr（Kn） | Cor(Kn) | 脂 | 油 | Cr（Kn） | Cor（Kn） | 脂 | 油 | |||
| 8 | 22 | 7 | 708 | 0.30 | 0.30 | 3.80 | 1.73 | 75000 | 120000 | 3.75 | 1.66 | 67000 | 100000 |
| 9 | 24 | 7 | 709 | 0.30 | 0.30 | 5.20 | 2.40 | 67000 | 100000 | 5.10 | 2.32 | 60000 | 90000 |
| 10 | 19 | 5 | 71800 | 0.30 | 0.10 | 1.90 | 0.98 | 75000 | 120000 | 1.80 | 0.93 | 70000 | 110000 |
| 22 | 6 | 71900 | 0.30 | 0.30 | 3.00 | 1.53 | 70000 | 110000 | 2.90 | 1.46 | 63000 | 95000 | |
| 26 | 8 | 7000 | 0.30 | 0.30 | 4.25 | 2.08 | 60000 | 90000 | 4.05 | 2.00 | 56000 | 85000 | |
| 30 | 9 | 7200 | 0.60 | 0.60 | 5.85 | 2.90 | 56000 | 85000 | 5.60 | 2.80 | 50000 | 75000 | |
| 12 | 21 | 5 | 71801 | 0.30 | 0.10 | 2.08 | 1.18 | 67000 | 100000 | 1.96 | 1.12 | 60000 | 90000 |
| 24 | 6 | 71901 | 0.30 | 0.30 | 3.35 | 1.86 | 60000 | 90000 | 3.20 | 1.76 | 56000 | 85000 | |
| 28 | 8 | 7001 | 0.30 | 0.30 | 4.75 | 2.60 | 56000 | 85000 | 4.55 | 2.50 | 50000 | 75000 | |
| 32 | 10 | 7201 | 0.60 | 0.60 | 7.65 | 3.90 | 50000 | 75000 | 7.35 | 3.75 | 45000 | 67000 | |
| 15 | 24 | 5 | 71802 | 0.30 | 0.10 | 2.28 | 1.50 | 56000 | 85000 | 2.16 | 1.40 | 50000 | 75000 |
| 28 | 7 | 71902 | 0.30 | 0.30 | 5.00 | 2.90 | 50000 | 75000 | 4.80 | 2.75 | 48000 | 70000 | |
| 32 | 9 | 7002 | 0.30 | 0.30 | 6.20 | 3.40 | 48000 | 70000 | 6.00 | 3.25 | 43000 | 63000 | |
| 35 | 11 | 7202 | 0.60 | 0.60 | 9.65 | 5.00 | 45000 | 67000 | 9.30 | 4.80 | 40000 | 60000 | |
| 17 | 26 | 5 | 71803 | 0.30 | 0.10 | 2.32 | 1.60 | 50000 | 75000 | 2.20 | 1.53 | 48000 | 70000 |
| 30 | 7 | 71903 | 0.30 | 0.30 | 5.30 | 3.15 | 48000 | 70000 | 5.00 | 3.00 | 43000 | 63000 | |
| 35 | 10 | 7003 | 0.30 | 0.30 | 8.65 | 4.90 | 43000 | 63000 | 8.30 | 4.75 | 38000 | 56000 | |
| 40 | 12 | 7203 | 0.60 | 0.60 | 10.80 | 5.85 | 38000 | 56000 | 10.40 | 5.60 | 36000 | 53000 | |
| 20 | 32 | 7 | 71804 | 0.30 | 0.10 | 3.8 | 2.65 | 43000 | 63000 | 3.65 | 2.50 | 38000 | 56000 |
| 37 | 9 | 71904 | 0.30 | 0.30 | 7.35 | 4.55 | 38000 | 56000 | 6.95 | 4.40 | 36000 | 53000 | |
| 42 | 12 | 7004 | 0.60 | 0.60 | 10.40 | 6.00 | 36000 | 53000 | 10.00 | 5.70 | 32000 | 48000 | |
| 47 | 14 | 7204 | 1.00 | 1.00 | 14.60 | 8.15 | 32000 | 48000 | 14.00 | 7.80 | 30000 | 45000 | |
| 25 | 37 | 7 | 71805 | 0.30 | 0.10 | 4.15 | 3.20 | 36000 | 53000 | 3.90 | 3.00 | 32000 | 48000 |
| 42 | 9 | 71905 | 0.30 | 0.30 | 8.15 | 5.70 | 32000 | 48000 | 7.80 | 5.50 | 30000 | 45000 | |
| 47 | 12 | 7005 | 0.60 | 0.60 | 14.60 | 9.15 | 30000 | 45000 | 13.70 | 8.65 | 28000 | 43000 | |
| 52 | 15 | 7205 | 1.00 | 1.00 | 15.60 | 9.30 | 28000 | 43000 | 15.00 | 9.00 | 26000 | 40000 | |
| 30 | 42 | 7 | 71806 | 0.30 | 0.10 | 4.40 | 3.65 | 30000 | 45000 | 4.15 | 3.40 | 28000 | 43000 |
| 47 | 9 | 71906 | 0.30 | 0.30 | 8.65 | 6.55 | 28000 | 43000 | 8.15 | 6.30 | 26000 | 40000 | |
| 55 | 13 | 7006 | 1.00 | 1.00 | 15.00 | 10.20 | 26000 | 40000 | 14.30 | 9.80 | 24000 | 38000 | |
| 62 | 16 | 7206 | 1.00 | 1.00 | 23.20 | 14.60 | 24000 | 38000 | 22.00 | 14.00 | 22000 | 36000 | |
