英制系列產品

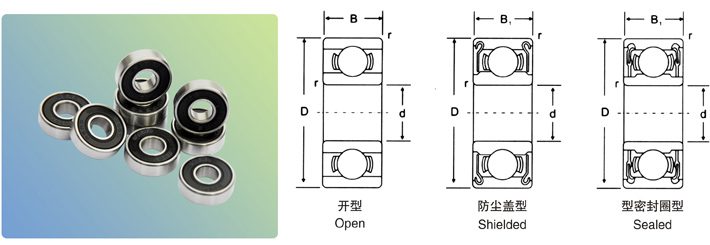

外形尺寸										軸承代號
d		D		B		B1		rsmin		開式	防塵蓋型	密封圈型
Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Open	Shielded	Sealed
0.1250	3.175	0.3125	7.938	0.1094	2.779	0.1406	3.571	0.004	0.1	R2-5	R2-5ZZ	/
0.1250	3.175	0.3750	9.525	0.1094	2.779	0.1406	3.571	0.006	0.15	R2-6	R2-6ZZ	/
0.1250	3.175	0.3750	9.525	0.1562	3.967	0.1562	3.967	0.012	0.3	R2	R2ZZ	R2-2RS
0.1250	3.175	0.5000	12.700	0.1719	4.366	0.1719	4.366	0.012	0.3	R2A	R2AZZ	R2A-2RS
0.1875	4.762	0.5000	12.700	0.1562	3.967	0.1960	4.978	0.012	0.3	R3	R3ZZ	R3-2RS
0.2500	6.350	0.6250	15.875	0.1960	4.978	0.1960	4.978	0.012	0.3	R4	R4ZZ	R4-2RS
0.2500	6.350	0.7500	19.050	0.2188	5.558	0.2812	7.142	0.016	0.4	R4A	R4AZZ	R4A-2RS
0.3750	9.525	0.8750	22.225	0.2188	5.558	0.2812	7.142	0.016	0.4	R6	R6ZZ	R6-2RS
0.5000	12.700	1.1250	28.575	0.2500	6.350	0.3125	7.938	0.016	0.4	R8	R8ZZ	R8-2RS
0.1875	4.762	0.6875	17.462	0.2500	6.350	0.2500	6.350	0.012	0.3	1601	1601ZZ	/
0.1875	4.672	0.6875	17.462	/	/	0.3125	7.938	0.012	0.3	/	/	1601-2RS
0.2500	6.350	0.6875	17.462	0.2500	6.350	0.2500	6.350	0.012	0.3	1602	1602ZZ	/
0.2500	6.350	0.6875	17.462	/	/	0.3125	7.938	0.012	0.3	/	/	1602-2RS
0.3125	7.938	0.8750	22.225	0.2812	7.142	0.2812	7.142	0.012	0.3	1603	1603ZZ	/
0.3125	7.938	0.8750	22.225	/	/	0.3437	8.731	0.012	0.3	/	/	1603-2RS
0.3750	9.525	0.8750	22.225	0.2812	7.142	0.2512	7.142	0.012	0.3	1604	1604ZZ	/
0.3750	9.525	0.8750	22.225	/	/	0.3437	8.731	0.012	0.3	/	/	1604-2RS
0.3125	7.938	0.9062	23.017	0.3125	7.938	0.3125	7.938	0.012	0.3	1605	1605ZZ	1605-2RS
0.3750	9.525	0.9602	23.017	0.3125	7.938	0.3125	7.938	0.012	0.3	1606	1606ZZ	1606-2RS
0.4375	11.112	0.9602	23.017	0.3125	7.938	0.3125	7.938	0.012	0.3	1607	1607ZZ	1607-2RS
0.3750	9.525	1.1250	28.575	0.3750	9.525	0.3750	9.525	0.012	0.3	1614	1614ZZ	1614-2RS
0.4375	11.112	1.1250	28.575	0.3750	9.525	0.3750	9.525	0.012	0.3	1615	1615ZZ	1615-2RS
0.5000	12.700	1.1250	28.575	0.3750	9.525	0.3750	9.525	0.012	0.3	1616	1616ZZ	1616-2RS
